278252

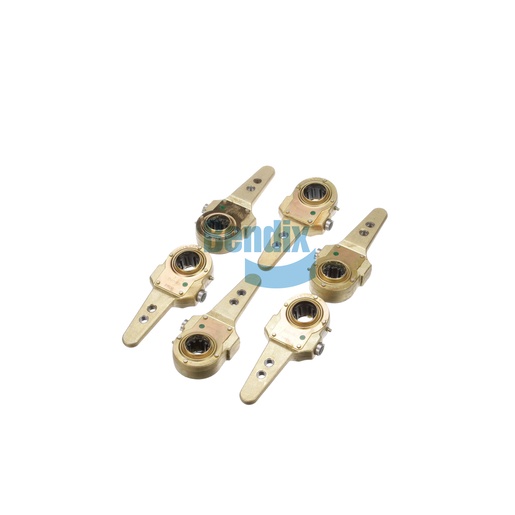

Slack Adjuster (Manual)
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Manual Slack Adjuster from Bendix is an essential component for optimizing the performance of your vehicle's braking system. Designed for heavy-duty applications, this slack adjuster offers a torque rating of 26,000 IN LBS, ensuring your brakes remain consistently effective. With a net weight of 1.9 kg (4.19 lb), it is constructed from durable materials to withstand rigorous use in commercial environments. This adjuster allows for manual adjustments, ensuring that brakes are always correctly calibrated for optimal performance and safety. By investing in this product, you ensure that your vehicle maintains peak braking efficiency, enhancing safety on the road. For genuine Bendix OEM parts that you can trust, Source One Parts Center is the premier destination.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Arm Offset
0.625 IN (Right Hand)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Length
110.0 mm (4.33 in)
Maximum Operating Temperature
158 °F (70 °C)
Height
237.0 mm (9.33 in)
Torque Rating
26,000 IN LBS
Arm Length 2
4.50 IN
Arm Length 1
5.50 IN
Width
51.0 mm (2.01 in)
Harmonized System (HS) Code
870839,870830
Country of Origin
China
Product Type
Manual - Type 26
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
4.19 lb
