278253

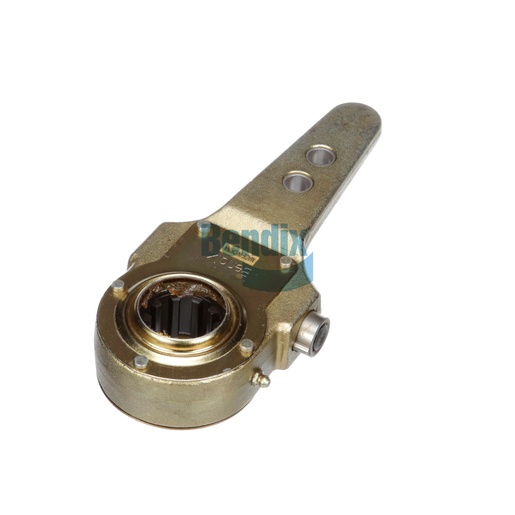

Slack Adjuster (Manual)
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Manual Slack Adjuster is designed to provide precise adjustment of your vehicle's brakes, ensuring optimal performance and safety. With a torque rating of 26,000 IN LBS, this slack adjuster is engineered to handle the demands of heavy-duty applications. Its durable construction ensures long-lasting reliability, even in the most challenging environments. The manual design allows for straightforward adjustments, making maintenance quick and efficient. Featuring an ergonomic design, it enhances user experience while promoting safety during operation. For high-quality Bendix components, Source One Parts Center is the trusted choice for genuine OEM parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Arm Offset
0.625 IN (Left Hand)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Length
110.0 mm (4.33 in)
Maximum Operating Temperature
158 °F (70 °C)
Height
237.0 mm (9.33 in)
Torque Rating
26,000 IN LBS
Arm Length 2
4.50 IN
Arm Length 1
5.50 IN
Width
51.0 mm (2.01 in)
Harmonized System (HS) Code
870839,870830
Country of Origin
China
Product Type
Manual - Type 26
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
4.76 lb
