278288

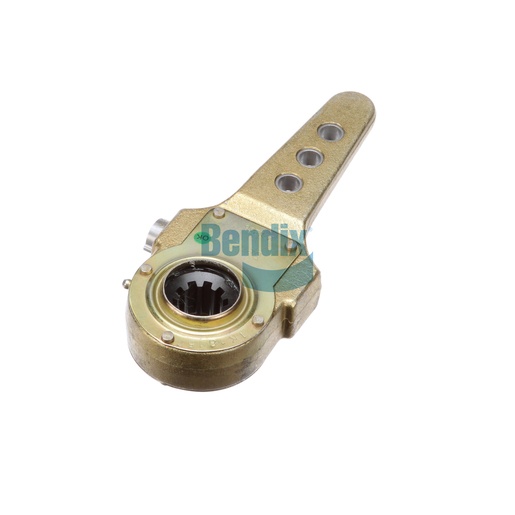

Slack Adjuster (Manual)
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Manual Slack Adjuster is a key component in your vehicle's braking system, engineered to ensure optimal performance and safety. Weighing 2.1 kg, this durable slack adjuster is designed for easy installation and adjustment, allowing for precise control over brake shoe positioning. Its robust construction is suitable for heavy-duty applications, ensuring it withstands the rigors of commercial vehicle operation. The slack adjuster's manual operation allows for straightforward maintenance, helping to prolong the life of your braking components. By choosing this genuine Bendix part, you enhance the reliability and effectiveness of your truck's braking system. Source One Parts Center is your best choice for authentic Bendix parts, offering a wide selection to meet your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Arm Offset
0.625 IN (Right Hand)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Length
110.0 mm (4.33 in)
Maximum Operating Temperature
158 °F (70 °C)
Height
237.0 mm (9.33 in)
Torque Rating
26,000 IN LBS
Arm Length 3
4.00 IN
Arm Length 2
5.00 IN
Width
51.0 mm (2.01 in)
Arm Length 1
6.00 IN
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Manual - Type 26
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.25 IN - 10 Spline
Weight
4.72 lb
