278289

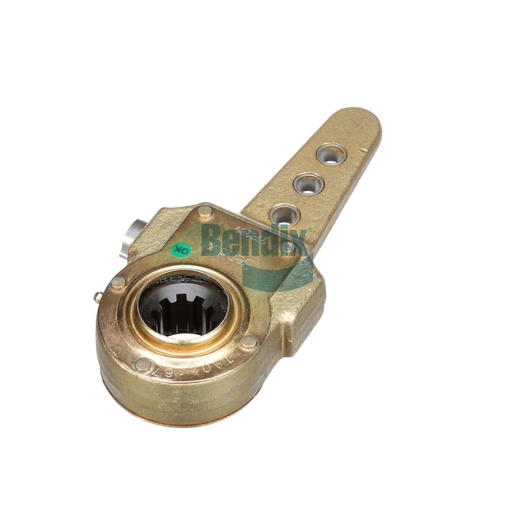

Slack Adjuster (Manual)
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Manual Slack Adjuster is designed to enhance the efficiency of your vehicle's braking system by providing precise control over brake shoe clearance. With a torque rating of 26,000 IN LBS, it ensures that your brakes maintain optimal contact with the drum, improving stopping power and safety. This adjuster is built from high-quality materials, allowing it to withstand the rigors of heavy-duty applications while providing accurate adjustments to brake slack. The adjustable arm lengths and offsets ensure compatibility with a variety of brake system configurations, making it a versatile choice for fleet and maintenance operations. With its reliable performance, the manual slack adjuster contributes to reducing wear and tear on braking components, ultimately lowering maintenance costs. For the best selection of genuine Bendix OEM parts, Source One Parts Center is your ultimate source for ensuring your vehicle's braking system is always in top condition.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Arm Offset
0.625 IN (Left Hand)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Length
110.0 mm (4.33 in)
Maximum Operating Temperature
158 °F (70 °C)
Height
237.0 mm (9.33 in)
Torque Rating
26,000 IN LBS
Arm Length 3
4.00 IN
Arm Length 2
5.00 IN
Width
51.0 mm (2.01 in)
Arm Length 1
6.00 IN
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Manual - Type 26
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.25 IN - 10 Spline
Weight
4.67 lb
