278305

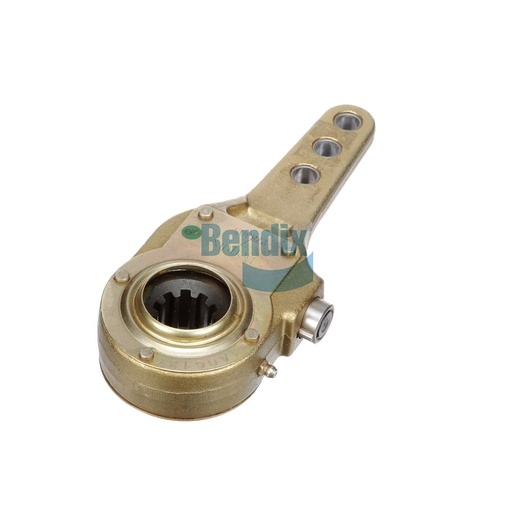

Slack Adjuster (Manual)
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Manual Slack Adjuster from Bendix is designed to enhance the performance and safety of your vehicle's braking system. This adjuster allows for precise control over the brake shoes, ensuring optimal braking efficiency. With a torque rating of 26,000 IN LBS, it is built to handle the demands of heavy-duty applications. The construction of this slack adjuster is robust, ensuring durability and longevity even under extreme conditions. Weighing only 2.1 kg, it is designed for easy installation, making maintenance straightforward. For those looking to maintain their vehicle's performance, Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring quality and reliability for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
26,000 IN LBS
Arm Length 3
5.00 IN
Arm Length 2
6.00 IN
Arm Length 1
7.00 IN
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Manual - Type 26
Arm Offset
No Offset
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.25 IN - 10 Spline
Weight
4.7 lb
