278794N
Slack Adjuster (Manual)
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

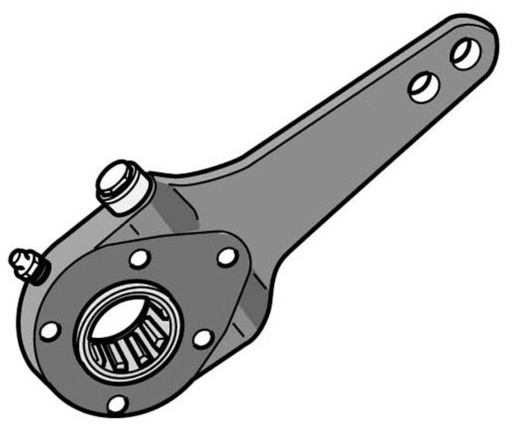

The Bendix Manual Slack Adjuster is engineered for precision and reliability in heavy-duty braking applications. This component features a torque rating of 35,000 IN LBS, ensuring it can handle the demands of commercial vehicles. With an arm length of 8.00 inches and a robust design, it allows for easy adjustments, enhancing braking efficiency. Weighing 6.1 kg, this slack adjuster is built to withstand the rigors of the road, providing dependable performance under various conditions. Its installation is straightforward, allowing fleet operators to maintain optimal braking systems with minimal downtime. For sourcing high-quality Bendix parts, Source One Parts Center is the best choice, offering genuine products that meet or exceed industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
35,000 IN LBS
Arm Length 1
8.00 IN
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Manual - Type 35
Arm Offset
No Offset
Arm Bushing(s)
Ø .75 IN (Ø 19 MM)
Spline Diameter - Teeth
Ø 1.75 IN - 10 Spline
Weight
13.45 lb
