DESCRIPTION

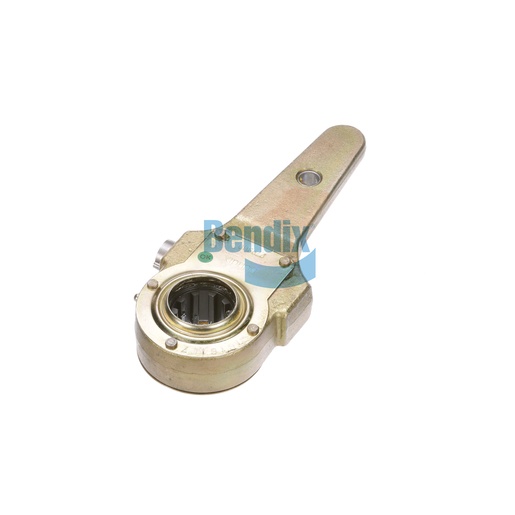

The Manual Slack Adjuster from Bendix is engineered to provide precise control and adjustment of your vehicle's brake system, ensuring optimal performance and safety. With a torque rating of 26,000 IN LBS, this adjuster is built to handle the demanding conditions of commercial applications. Its compact design and lightweight construction, weighing just 1.9 kg, allow for quick installation and maintenance, minimizing downtime. The manual adjustment feature empowers operators to fine-tune their braking system, promoting effective wear patterns on brake shoes. For the best in genuine Bendix OEM parts, Source One Parts Center is your trusted partner, offering high-quality products that enhance the durability and reliability of your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Arm Offset
0.625 IN (Right Hand)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
26,000 IN LBS
Arm Length 1
5.25 IN
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Manual - Type 26
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
4.21 lb
