279947N

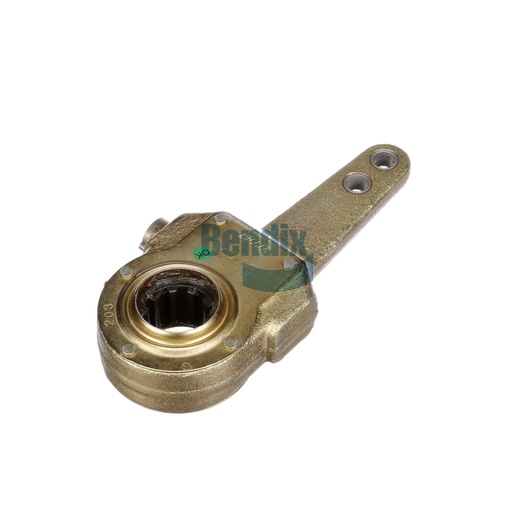

Slack Adjuster (Manual)
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Manual Slack Adjuster from Bendix is engineered to optimize your commercial vehicle's braking system by ensuring proper brake adjustment and enhancing safety. This robust component is designed specifically for manual applications, offering a torque rating of 26,000 IN LBS, which ensures durability under heavy loads. The adjuster's innovative design features a 360-degree viewer, allowing for detailed inspection and installation guidance. With an arm length of 7.00 inches and a maximum operating temperature of 158°F, this part is suitable for a wide range of temperature conditions, ensuring reliability in various driving environments. Its straight lube fitting simplifies maintenance, promoting longer service life and consistent performance. The Slack Adjuster plays a crucial role in maintaining optimal brake performance, reducing stopping distances, and improving overall vehicle safety. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center stands out as the premier destination for quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Arm Offset
0.625 IN (Left Hand)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
26,000 IN LBS
Arm Length 2
6.00 IN
Arm Length 1
7.00 IN
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Manual - Type 26
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
4.48 lb
