282561

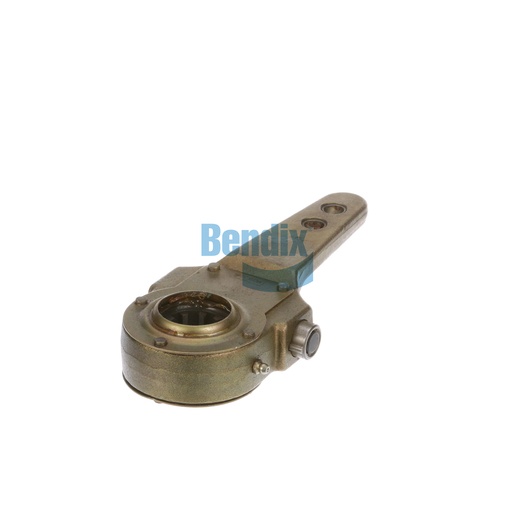

Slack Adjuster (Manual)
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Manual Slack Adjuster is engineered to ensure optimal brake performance by maintaining the correct brake shoe clearance. This component is vital for commercial vehicles, as it adjusts the slack in the brake system, ensuring that the brakes engage effectively and consistently. Designed for durability, this slack adjuster can handle the demands of heavy-duty applications, providing reliable service over time. Its manual operation allows for precise adjustments, helping to extend the life of brake components and improve overall braking efficiency. With a torque rating capable of managing significant forces, this adjuster is an essential piece of equipment for fleet operators who prioritize safety and performance. Source One Parts Center is the ultimate destination for genuine Bendix OEM parts, ensuring you receive the highest quality components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Arm Offset
0.625 IN (Left Hand)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
26,000 IN LBS
Arm Length 2
5.50 IN
Arm Length 1
6.50 IN
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Manual - Type 26
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
6.9 lb
