287899N

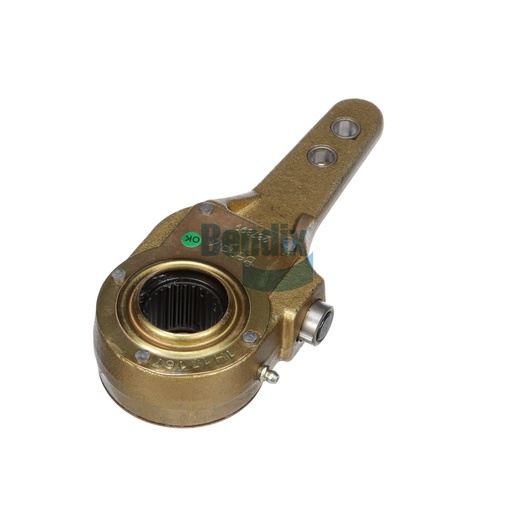

Slack Adjuster (Manual)
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Manual Slack Adjuster is designed to ensure optimal brake performance by allowing for precise adjustments to your vehicle's braking system. With a robust torque rating of 30,000 IN LBS, this adjuster is engineered for heavy-duty applications, ensuring durability and reliability over time. Its manual operation provides straightforward adjustments, making it easy to maintain the proper brake clearance for safe operation. Constructed from high-quality materials, it is built to withstand challenging environments, offering long-lasting service life. For the best selection of genuine Bendix components, Source One Parts Center is your trusted source for OEM parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
30,000 IN LBS
Arm Length 2
5.50 IN
Arm Length 1
6.50 IN
Harmonized System (HS) Code
870839,870830
Country of Origin
China
Product Type
Manual - Type 30
Arm Offset
No Offset
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
6.72 lb
