DESCRIPTION

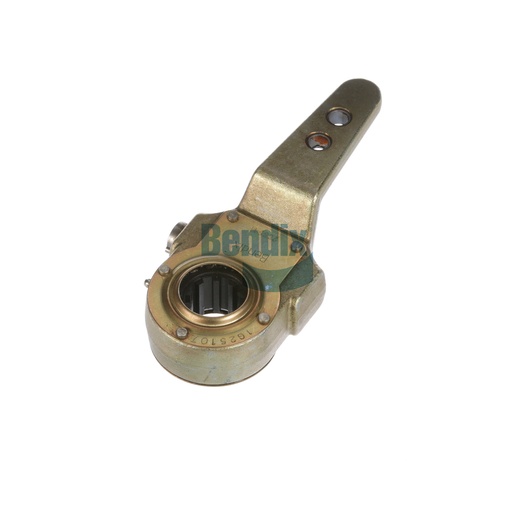

The Manual Slack Adjuster from Bendix is engineered to optimize brake performance in commercial vehicles, ensuring that brakes are automatically adjusted to maintain optimal functionality. This robust component boasts a torque rating of 20,000 IN LBS, providing excellent strength and durability even under high-stress conditions. Its manual adjustment feature allows for easy maintenance, ensuring that drivers can keep their brakes in top condition without the need for specialized tools. With an inclination angle of 0° and a maximum operating temperature of 158°F, this slack adjuster is designed for a variety of applications, enhancing the overall safety and performance of your braking system. Weighing just 3.1 kg, its compact design simplifies installation in tight spaces. For genuine Bendix OEM parts, including the Manual Slack Adjuster, Source One Parts Center is your trusted source for quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Arm Offset
1.50 IN (Right Hand)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Arm Length 2
5.00 IN
Arm Length 1
6.00 IN
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Manual - Type 20
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
6.86 lb
