315289

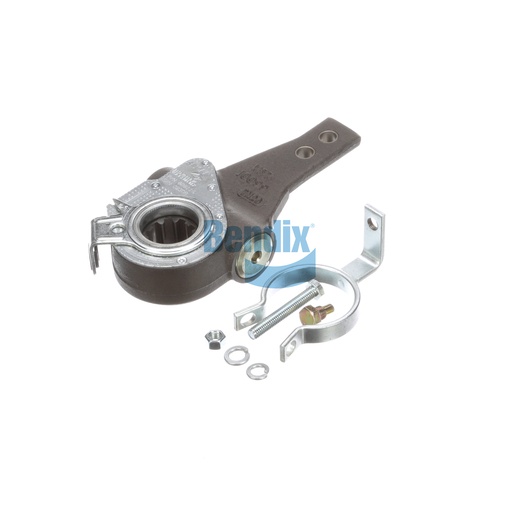

Slack Adjuster Kit
Bendix

UNAVAILABLE

Bendix

Non Returnable

FINAL SALE. No returns or exchanges.

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.


DESCRIPTION
The Automatic Slack Adjuster Kit from Bendix is engineered to enhance braking efficiency and safety in commercial vehicles. This kit automatically adjusts the brake shoes, ensuring they maintain optimal contact with the drum, which significantly reduces brake wear and improves overall performance. Designed for easy installation, it features a torque rating of 23,000 IN LBS, capable of handling the heavy demands of commercial braking systems. The adjuster's robust construction allows it to operate reliably in various conditions, with a temperature range from -40°F to 158°F. By maintaining the correct brake adjustment, this slack adjuster helps improve stopping distance, ensuring that drivers can rely on their brakes under heavy loads and adverse conditions. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the go-to option, providing customers with high-quality products and excellent support.

SPECIFICATIONS

Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
Anchor Bracket Angle
130°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
23,000 IN LBS
Free Stroke Position
Arm Length 1
5.50 IN
Arm Length 2
6.50 IN
Harmonized System (HS) Code
870830
Anchor Bracket Style
Clamp
Product Type
Grounded - Haldex ABA (AA1)
Self-Setting
No
Arm Offset
No Offset
Reference Arm Style
Single Bend
Anchor Type
Slot
Lube Fitting Type
Straight
Country of Origin
United States
Lube Fitting Position
Upper Position (Arm)
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
8.49 lb
