317092

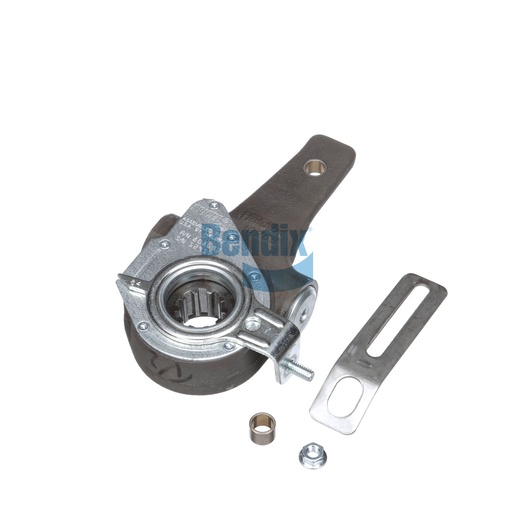

Slack Adjuster Kit
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Slack Adjuster Kit from Bendix is a vital component in maintaining the efficiency and safety of your vehicle’s brake system. This automatic slack adjuster is designed to keep brake shoes properly adjusted, ensuring optimal contact with the drum for effective braking performance. Its robust construction withstands the rigors of heavy-duty applications, providing reliable service over time. With easy installation and compatibility with various brake systems, this kit is perfect for fleet operators looking to enhance the longevity and performance of their vehicles. Source One Parts Center is your go-to destination for genuine Bendix OEM parts, ensuring you receive quality components that meet the highest industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Anchor Bracket Angle
0°
Inclination Angle (Body Angle)
0°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
23,000 IN LBS
Free Stroke Position
4°
Arm Length 1
5.50 IN
Harmonized System (HS) Code
870830
Lube Fitting Type
90° Elbow
Product Type
Grounded - Haldex ABA (AA1)
Country of Origin
Mexico
Self-Setting
No
Arm Offset
No Offset
Reference Arm Style
Single Bend
Anchor Bracket Style
Strap
Anchor Type
Stud
Lube Fitting Position
Upper Position (Arm)
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.25 IN - 10 Spline
Weight
7.19 lb
