325634

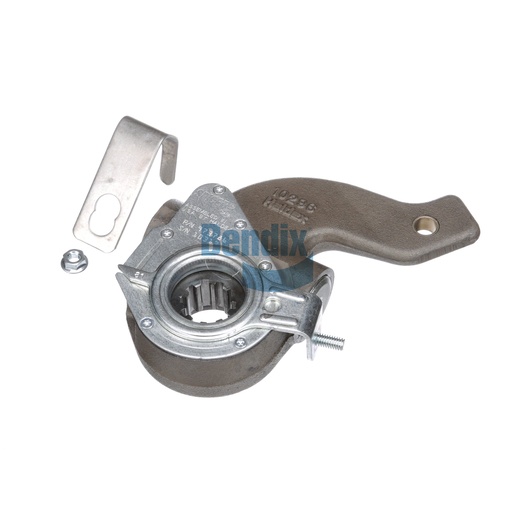

Slack Adjuster Kit
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Slack Adjuster Kit is essential for maintaining proper brake adjustments in heavy-duty applications, ensuring vehicle safety and performance. This kit includes all necessary components for easy installation and adjustment, enabling quick maintenance to keep your brakes functioning optimally. With a torque rating designed for demanding conditions, this kit ensures durability and reliability, making it a smart choice for fleet operations. Proper slack adjustment is crucial for extending the life of your braking system and improving overall vehicle efficiency. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center stands out as the best choice for quality and reliability.
SPECIFICATIONS
Anchor Bracket Angle
-16°
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Maximum Operating Temperature
158 °F (70 °C)
Lube Fitting Position
180°
Torque Rating
23,000 IN LBS
Inclination Angle (Body Angle)
35°
Free Stroke Position
4°
Arm Length 1
5.50 IN
Harmonized System (HS) Code
870839,870830
Anchor Bracket Style
Clamp
Product Type
Grounded - Haldex ABA (AA1)
Country of Origin
Mexico
Self-Setting
No
Arm Offset
No Offset
Reference Arm Style
Single Bend
Lube Fitting Type
Straight
Anchor Type
Stud
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.25 IN - 10 Spline
Weight
6.99 lb
