327388

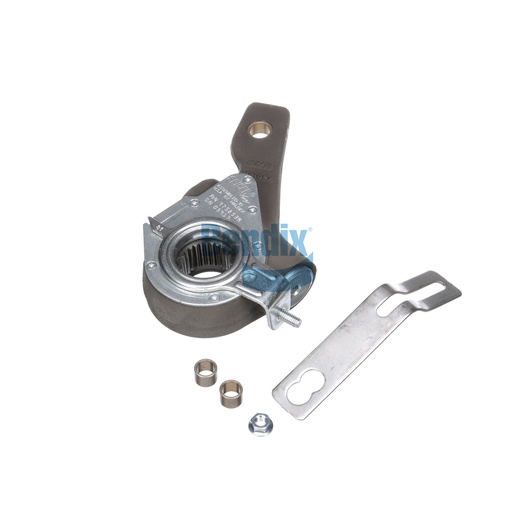

Slack Adjuster Kit
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Slack Adjuster Kit from Bendix is engineered to provide automatic adjustment of your brake system, ensuring optimal braking performance and safety in commercial vehicles. This kit includes a high-quality automatic slack adjuster that maintains proper brake shoe clearance, which is vital for effective braking and reduced wear. The design allows for a seamless installation, enabling fleet operators to enhance their braking systems with minimal downtime. Its durable construction ensures that it can withstand the rigors of heavy-duty use, providing long-lasting reliability. By using this slack adjuster kit, you can enhance the safety of your vehicle and improve its overall efficiency. Source One Parts Center is the best source for genuine Bendix OEM parts, offering you peace of mind with every purchase.
SPECIFICATIONS
Anchor Bracket Angle
-16°
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Maximum Operating Temperature
158 °F (70 °C)
Lube Fitting Position
180°
Torque Rating
23,000 IN LBS
Inclination Angle (Body Angle)
34°
Free Stroke Position
4°
Arm Length 1
5.50 IN
Harmonized System (HS) Code
870830
Product Type
Grounded - Haldex ABA (AA1)
Country of Origin
Mexico
Self-Setting
No
Arm Offset
No Offset
Reference Arm Style
Single Bend
Lube Fitting Type
Straight
Anchor Bracket Style
Strap
Anchor Type
Stud
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
7.03 lb
