808124N

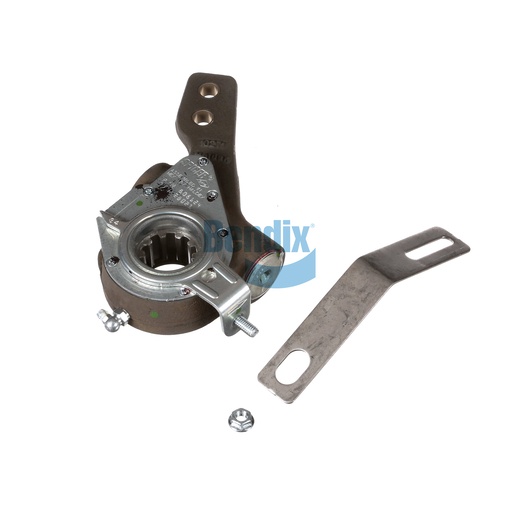

Slack Adjuster (Automatic)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Automatic Slack Adjuster is a vital component ensuring that the brakes on your vehicle maintain optimal performance. This device automatically adjusts the brake shoes as they wear, ensuring consistent braking force and efficiency, thus enhancing safety on the road. Constructed with high-quality materials, this slack adjuster is designed to withstand the rigors of heavy-duty applications, ensuring durability and longevity. Its easy installation and reliable mechanism make it a must-have for fleet operators and mechanics alike. Investing in this component contributes significantly to the overall performance of your braking system. For genuine Bendix OEM parts, Source One Parts Center is the leading choice for quality and dependability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Anchor Bracket Angle
0°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
23,000 IN LBS
Inclination Angle (Body Angle)
34°
Free Stroke Position
4°
Arm Length 1
5.00 IN
Arm Length 2
6.00 IN
Harmonized System (HS) Code
870830
Lube Fitting Position
90°
Lube Fitting Type
90° Elbow
Product Type
Grounded - Haldex ABA (AA1)
Country of Origin
Mexico
Self-Setting
No
Arm Offset
No Offset
Reference Arm Style
Single Bend
Anchor Bracket Style
Strap
Anchor Type
Stud
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
6.88 lb
