814696

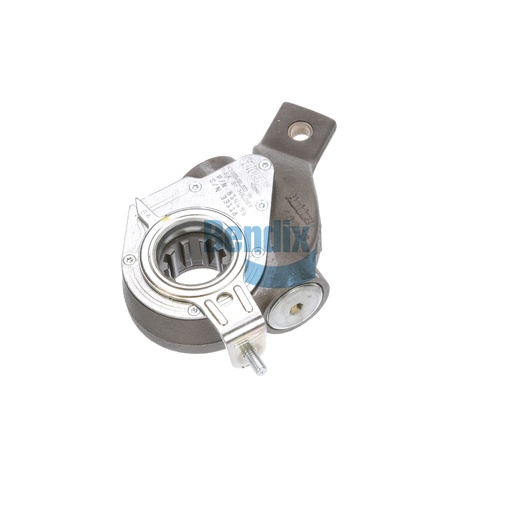

Slack Adjuster (Automatic)
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Automatic Slack Adjuster is a critical component designed to optimize the performance of the braking system in commercial vehicles. This innovative product automatically adjusts the brake shoes to maintain optimal brake performance, ensuring consistent and reliable operation. Its design is engineered for heavy-duty use, providing durability and longevity even under demanding conditions. With a net weight of 3.3 kg, this slack adjuster is lightweight yet robust, making it easy to install and maintain. By choosing genuine Bendix OEM parts, you are ensuring your vehicle operates safely and efficiently, and Source One Parts Center is your top choice for high-quality components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Anchor Bracket Angle
0°
Arm Offset
1.50 IN (Left Hand)
Maximum Operating Temperature
158 °F (70 °C)
Lube Fitting Position
180°
Torque Rating
23,000 IN LBS
Inclination Angle (Body Angle)
34°
Free Stroke Position
4°
Arm Length 1
5.50 IN
Harmonized System (HS) Code
870830
Product Type
Grounded - Haldex ABA (AA1)
Country of Origin
Mexico
Self-Setting
No
Reference Arm Style
Single Bend
Lube Fitting Type
Straight
Anchor Bracket Style
Strap
Anchor Type
Stud
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
7.32 lb
