814697

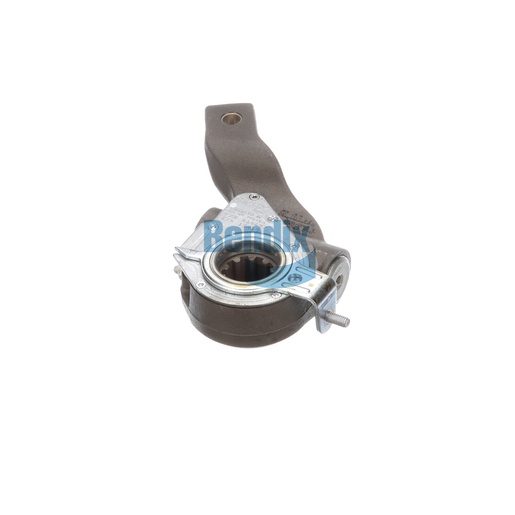

Slack Adjuster (Automatic)
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix automatic slack adjuster is a crucial component for enhancing the performance and safety of your vehicle's braking system. This part automatically adjusts the brake shoes to maintain optimal contact with the drum, ensuring consistent braking performance under various load conditions. With a robust construction and a net weight of 3.2 kg, it is designed to withstand the demands of heavy-duty applications. Its self-setting features reduce the need for manual adjustments, making maintenance easier and more efficient. This slack adjuster is an essential upgrade for any fleet manager looking to enhance vehicle safety and reliability on the road. For top-quality Bendix OEM parts, look to Source One Parts Center as your trusted supplier.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Anchor Bracket Angle
0°
Arm Offset
1.50 IN (Right Hand)
Maximum Operating Temperature
158 °F (70 °C)
Lube Fitting Position
180°
Torque Rating
23,000 IN LBS
Inclination Angle (Body Angle)
34°
Free Stroke Position
4°
Arm Length 1
5.50 IN
Harmonized System (HS) Code
870830
Product Type
Grounded - Haldex ABA (AA1)
Country of Origin
Mexico
Self-Setting
No
Reference Arm Style
Single Bend
Lube Fitting Type
Straight
Anchor Bracket Style
Strap
Anchor Type
Stud
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
7.1 lb
