815814

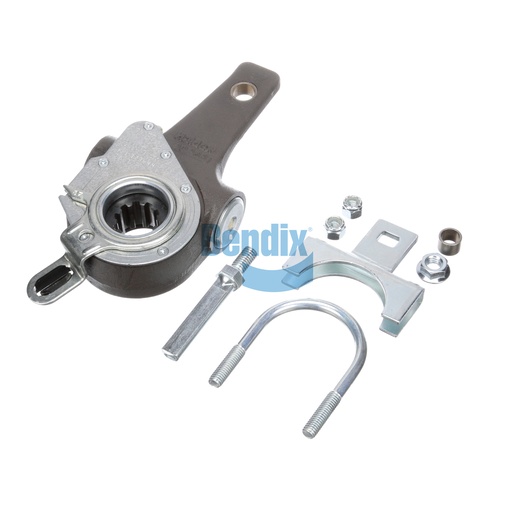

Slack Adjuster Kit
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$244.95
$293.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Slack Adjuster Kit is a comprehensive solution for maintaining the efficiency of your vehicle's braking system. This kit includes everything needed to ensure that your brakes adjust automatically, promoting optimal performance and safety on the road. With durable construction designed for heavy-duty applications, each component in the kit is engineered to withstand the toughest conditions. Easy to install, this kit ensures that your braking system remains responsive and effective, reducing the risk of brake failure. Regular maintenance with this kit is essential for any fleet or individual vehicles. Source One Parts Center is your best source for authentic Bendix OEM parts, ensuring you receive the highest quality components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Anchor Bracket Angle
111°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
23,000 IN LBS
Free Stroke Position
4°
Arm Length 1
5.50 IN
Harmonized System (HS) Code
870830
Lube Fitting Type
90° Elbow
Anchor Bracket Style
Clamp
Reference Arm Style
Double Bend
Product Type
Grounded - Haldex ABA (AA1)
Country of Origin
Mexico
Self-Setting
No
Arm Offset
No Offset
Anchor Type
Slot
Lube Fitting Position
Upper Position (Arm)
Arm Bushing(s)
Ø .637 IN (Ø 16.2 MM)
Spline Diameter - Teeth
Ø 1.25 IN - 10 Spline
Weight
7.98 lb
