817810N

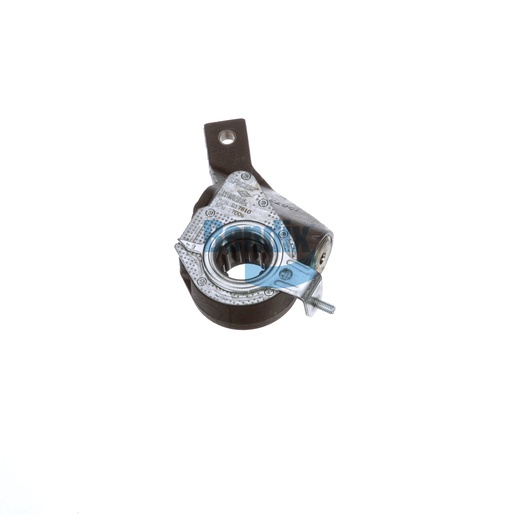

Slack Adjuster (Automatic)
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Automatic Slack Adjuster is engineered for precision and performance, ensuring that your truck's brake system remains optimally adjusted for safety and efficiency. With a robust torque rating of 23,000 IN LBS and a self-setting mechanism, this slack adjuster automatically compensates for brake wear, helping to extend the life of your brakes while improving overall vehicle safety. Built to withstand extreme conditions, this part features an arm length of 6.00 inches and is designed for easy installation. Whether you're managing a fleet or a single vehicle, the Automatic Slack Adjuster ensures that your truck's brakes are always in peak condition, aiding in effective stopping and handling. For the best selection of genuine Bendix parts, Source One Parts Center is your trusted source, offering quality parts that keep your operations running smoothly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Anchor Bracket Angle
0°
Arm Offset
1.50 IN (Left Hand)
Maximum Operating Temperature
158 °F (70 °C)
Lube Fitting Position
180°
Torque Rating
23,000 IN LBS
Inclination Angle (Body Angle)
34°
Free Stroke Position
4°
Arm Length 1
6.00 IN
Harmonized System (HS) Code
870830
Product Type
Grounded - Haldex ABA (AA1)
Self-Setting
No
Reference Arm Style
Single Bend
Lube Fitting Type
Straight
Anchor Type
Stud
Country of Origin
United States
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
6.99 lb
