817811N

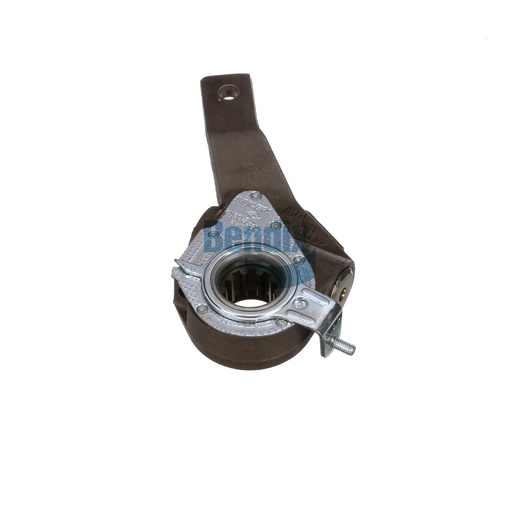

Slack Adjuster (Automatic)
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Optimize your braking system with the Bendix Automatic Slack Adjuster, engineered for reliable performance and ease of use. This slack adjuster is designed to maintain the correct brake adjustment automatically, ensuring consistent braking power and enhancing safety on the road. With a torque rating of 23,000 IN LBS and a robust construction, it is capable of withstanding the demands of heavy-duty applications. Weighing 3.2 kg, its lightweight design facilitates easy installation in various setups. The adjuster's self-setting feature simplifies maintenance, allowing for uninterrupted operation. By investing in this slack adjuster, you enhance the performance and reliability of your braking system. For quality Bendix OEM parts like this Automatic Slack Adjuster, Source One Parts Center is the best source, providing you with authentic components tailored for your vehicle's needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Anchor Bracket Angle
0°
Arm Offset
1.50 IN (Right Hand)
Maximum Operating Temperature
158 °F (70 °C)
Lube Fitting Position
180°
Torque Rating
23,000 IN LBS
Inclination Angle (Body Angle)
34°
Free Stroke Position
4°
Arm Length 1
6.00 IN
Harmonized System (HS) Code
870830
Product Type
Grounded - Haldex ABA (AA1)
Self-Setting
No
Reference Arm Style
Single Bend
Lube Fitting Type
Straight
Anchor Bracket Style
Strap
Anchor Type
Stud
Country of Origin
United States
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
6.99 lb
