973802N

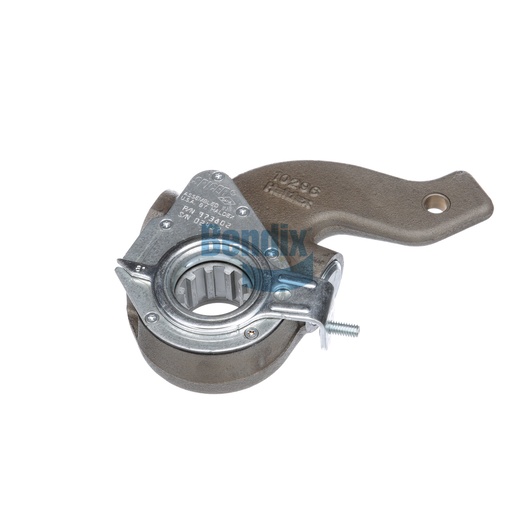

Slack Adjuster (Automatic)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Automatic Slack Adjuster is a critical component designed to enhance the efficiency and safety of your vehicle's braking system. This slack adjuster features a torque rating of 23,000 in-lbs and operates effectively in extreme temperatures ranging from -40 °F to 158 °F, making it suitable for a wide range of commercial applications. With a unique single bend arm style and a free stroke position of 4°, it provides precise adjustments to maintain optimal brake performance. The automatic mechanism ensures that your brakes are always properly adjusted, reducing the need for manual intervention and enhancing safety on the road. Weighing only 3.6 kg (7.98 lb), it's lightweight yet robust enough for heavy-duty use. Trust Bendix for reliability and performance in your braking system. When it comes to sourcing genuine Bendix parts, Source One Parts Center stands out as your best choice for quality and service.
SPECIFICATIONS
Anchor Bracket Angle
-16°
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Lube Fitting Type
1/8-27 NPT (Plugged)
Maximum Operating Temperature
158 °F (70 °C)
Lube Fitting Position
180°
Torque Rating
23,000 IN LBS
Inclination Angle (Body Angle)
35°
Free Stroke Position
4°
Arm Length 1
5.50 IN
Harmonized System (HS) Code
870830
Product Type
Grounded - Haldex ABA (AA1)
Self-Setting
No
Arm Offset
No Offset
Reference Arm Style
Single Bend
Anchor Bracket Style
Strap
Anchor Type
Stud
Country of Origin
United States
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
7.98 lb
