974205N

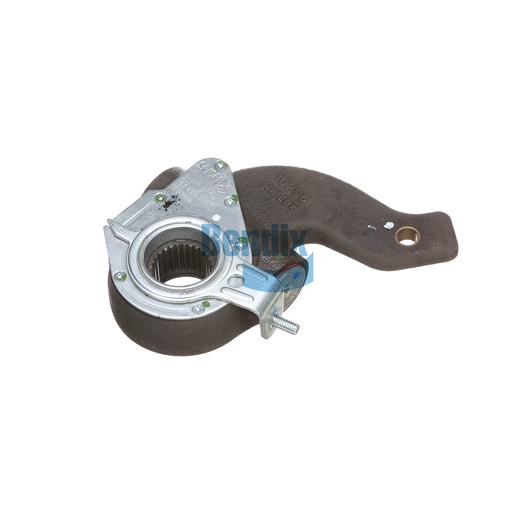

Slack Adjuster (Automatic)
Bendix
AVAILABLE
2 are currently available
Ships within 11-13 business days
$234.95
$281.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Automatic Slack Adjuster is designed to enhance the performance of your vehicle's braking system, ensuring consistent and reliable operation. Weighing 2.9 kg, this slack adjuster is built to withstand the rigors of commercial use, providing a self-adjusting mechanism that keeps your brakes in optimal condition. This feature reduces the chances of brake failure and enhances safety, which is vital for heavy-duty applications. The robust construction and precision engineering ensure that it can handle the demands of various driving conditions while extending the life of your brake components. With easy installation and compatibility across multiple models, this slack adjuster is an essential part of maintaining your braking system. For genuine Bendix OEM parts, Source One Parts Center is your top choice, assuring quality and reliability in every purchase.
SPECIFICATIONS
Anchor Bracket Angle
-16°
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Maximum Operating Temperature
158 °F (70 °C)
Lube Fitting Position
180°
Torque Rating
23,000 IN LBS
Inclination Angle (Body Angle)
35°
Free Stroke Position
4°
Arm Length 1
5.50 IN
Harmonized System (HS) Code
870830
Product Type
Grounded - Haldex ABA (AA1)
Self-Setting
No
Arm Offset
No Offset
Reference Arm Style
Single Bend
Lube Fitting Type
Straight
Anchor Bracket Style
Strap
Anchor Type
Stud
Country of Origin
United States
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
6.48 lb
