974898N

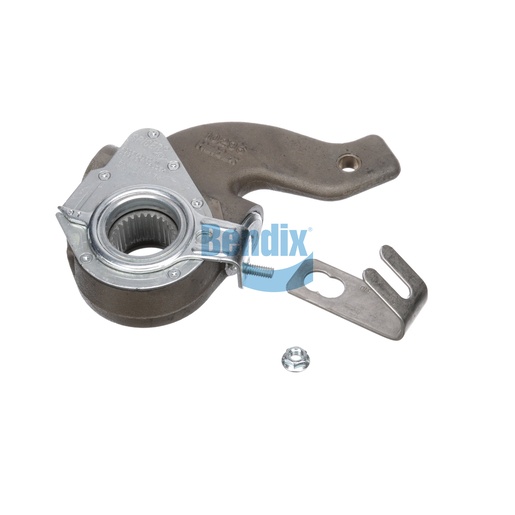

Slack Adjuster (Automatic)
Bendix

AVAILABLE

Bendix

1 is currently available

Ships within 11-13 business days

$269.95 $323.94

Non Returnable

FINAL SALE. No returns or exchanges.

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.


DESCRIPTION
The Automatic Slack Adjuster from Bendix is engineered for optimal performance and durability, ensuring that your commercial vehicle's brake system functions efficiently under varying conditions. With a torque rating of 23,000 inch-pounds, this slack adjuster automatically maintains the proper brake shoe clearance, significantly enhancing safety and extending the lifespan of your brake components. Its robust design, featuring a single bend arm style and a temperature range of -40°F to 158°F, allows it to operate effectively in harsh environments. The self-setting mechanism reduces the need for frequent manual adjustments, saving you time and labor costs. The slack adjuster also incorporates a lube fitting type of 1/8-27 NPT, making maintenance easier than ever. With a net weight of 3.2 kg (7.05 lb), this part is lightweight yet sturdy, making it suitable for a variety of commercial applications. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center stands out as the best choice for reliable quality and exceptional service.

SPECIFICATIONS

Anchor Bracket Angle
-16°
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Lube Fitting Type
1/8-27 NPT (Plugged)
Maximum Operating Temperature
158 °F (70 °C)
Lube Fitting Position
180°
Torque Rating
23,000 IN LBS
Inclination Angle (Body Angle)
35°
Free Stroke Position
Arm Length 1
5.50 IN
Harmonized System (HS) Code
870830
Product Type
Grounded - Haldex ABA (AA1)
Self-Setting
No
Arm Offset
No Offset
Reference Arm Style
Single Bend
Anchor Bracket Style
Strap
Anchor Type
Stud
Country of Origin
United States
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
7.05 lb
