975706N
Slack Adjuster (Automatic)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

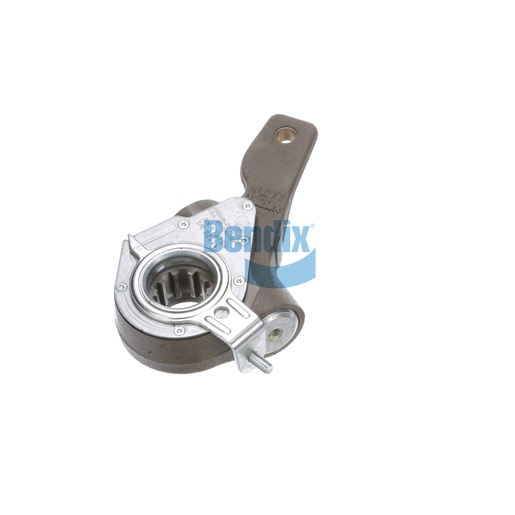

The Automatic Slack Adjuster from Bendix is designed to optimize the performance of your truck's braking system by automatically adjusting the brake shoe clearance as the brake linings wear. This innovative feature helps ensure that your brakes are always functioning at peak performance, improving safety and efficiency on the road. Its robust construction guarantees reliability and longevity, making it a vital component for any commercial vehicle. The slack adjuster's easy installation means that maintenance can be completed quickly, minimizing downtime. For genuine Bendix OEM parts, Source One Parts Center is the best choice, providing reliable products that meet rigorous quality standards.
SPECIFICATIONS
Anchor Bracket Angle
-16°
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Maximum Operating Temperature
158 °F (70 °C)
Lube Fitting Position
180°
Torque Rating
23,000 IN LBS
Inclination Angle (Body Angle)
34°
Lube Fitting Type
45° Elbow
Free Stroke Position
4°
Arm Length 1
6.00 IN
Harmonized System (HS) Code
870830
Product Type
Grounded - Haldex ABA (AA1)
Self-Setting
No
Arm Offset
No Offset
Reference Arm Style
Single Bend
Anchor Bracket Style
Strap
Anchor Type
Stud
Country of Origin
United States
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
9.99 lb
