$209.95
$251.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

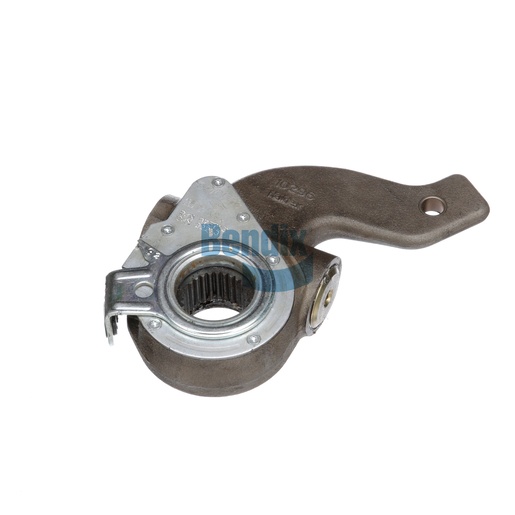

The Automatic Slack Adjuster from Bendix is a crucial component in maintaining optimal braking performance for commercial vehicles. Weighing 3.7 kg, this slack adjuster is engineered to automatically adjust brake shoe positioning, ensuring even wear and consistent braking force. Its advanced design features robust materials that enhance durability and reliability, allowing it to perform effectively under heavy-duty conditions. By utilizing a genuine Bendix slack adjuster, fleet operators can significantly reduce maintenance frequency and improve overall vehicle safety. The easy installation process makes it a practical choice for fleet maintenance teams. At Source One Parts Center, we pride ourselves on providing genuine Bendix OEM parts, ensuring your commercial vehicles operate at peak performance and safety.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Anchor Bracket Angle
130°
Maximum Operating Temperature
158 °F (70 °C)
Lube Fitting Position
180°
Torque Rating
23,000 IN LBS
Inclination Angle (Body Angle)
35°
Free Stroke Position
4°
Arm Length 1
5.50 IN
Harmonized System (HS) Code
870830
Anchor Bracket Style
Clamp
Product Type
Grounded - Haldex ABA (AA1)
Self-Setting
No
Arm Offset
No Offset
Reference Arm Style
Single Bend
Anchor Type
Slot
Lube Fitting Type
Straight
Country of Origin
United States
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
8.1 lb
