$369.95
$443.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

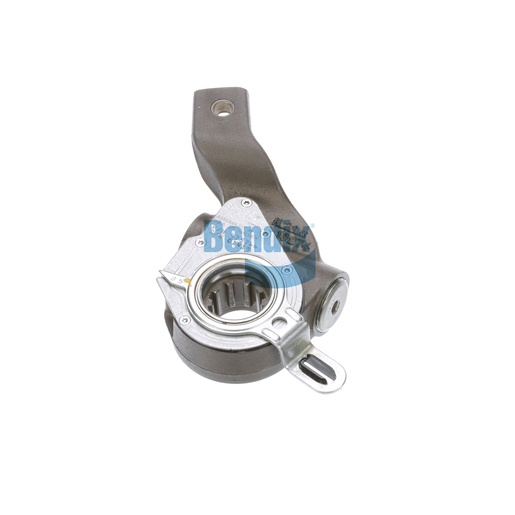

The Bendix Automatic Slack Adjuster is a crucial component for enhancing the braking efficiency of your commercial vehicle. This high-performance slack adjuster features a torque rating of 23,000 IN LBS, designed to handle the rigorous demands of heavy-duty applications. Its construction ensures that it can operate effectively even in extreme temperatures, ranging from a minimum of -40°F to a maximum of 158°F. The adjuster's self-setting feature and precise angles allow for optimal adjustment without the need for manual intervention, ensuring your braking system remains both effective and reliable. Additionally, with an arm length that accommodates various setups, this slack adjuster is versatile enough for a range of vehicle types. Choosing this part means investing in safety and performance for your fleet. For authentic Bendix OEM parts, Source One Parts Center is the most trusted source for quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Arm Offset
1.50 IN (Right Hand)
Anchor Bracket Angle
11°
Maximum Operating Temperature
158 °F (70 °C)
Lube Fitting Position
180°
Torque Rating
23,000 IN LBS
Inclination Angle (Body Angle)
34°
Lube Fitting Type
45° Elbow
Free Stroke Position
4°
Arm Length 1
5.50 IN
Harmonized System (HS) Code
870830
Anchor Bracket Style
Clamp
Reference Arm Style
Double Bend
Product Type
Grounded - Haldex ABA (AA1)
Self-Setting
No
Anchor Type
Slot
Country of Origin
United States
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
7.04 lb
