$209.95
$251.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

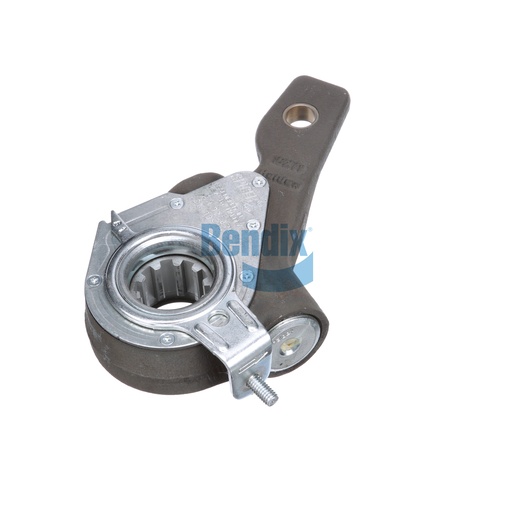

The Bendix Automatic Slack Adjuster is an essential component for ensuring optimal performance and safety in your vehicle’s braking system. Designed for ease of installation and maintenance, this slack adjuster automatically adjusts the brake system for consistent performance, enhancing safety and reducing wear on brake components. Weighing 3.0 kg (6.65 lb), it is built to withstand the rigors of commercial vehicle operation, featuring a torque rating of 23,000 in lbs. Its high-quality construction ensures durability and reliability, allowing you to drive with confidence under various conditions. This product is a must-have for maintaining your vehicle's braking system effectively. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring you get quality components for your commercial vehicles.
SPECIFICATIONS
Anchor Bracket Angle
-16°
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Lube Fitting Type
1/8-27 NPT (Plugged)
Maximum Operating Temperature
158 °F (70 °C)
Lube Fitting Position
180°
Torque Rating
23,000 IN LBS
Inclination Angle (Body Angle)
34°
Free Stroke Position
4°
Arm Length 1
5.50 IN
Harmonized System (HS) Code
870830
Product Type
Grounded - Haldex ABA (AA1)
Self-Setting
No
Arm Offset
No Offset
Reference Arm Style
Single Bend
Anchor Bracket Style
Strap
Anchor Type
Stud
Country of Origin
United States
Arm Bushing(s)
Ø .637 IN (Ø 16.2 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
6.65 lb
