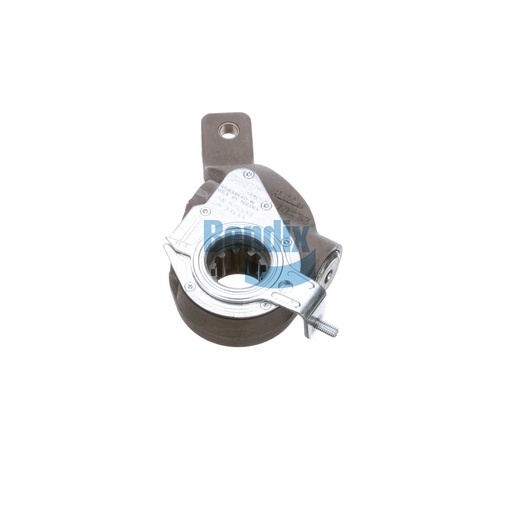

976688N
Slack Adjuster (Automatic)
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Bendix's Automatic Slack Adjuster is an essential component for ensuring optimal performance in your vehicle's braking system. Weighing 3.3 kg (7.25 lb), this slack adjuster is designed for reliability and efficiency, automatically adjusting to maintain proper brake function. This feature significantly enhances safety by ensuring that your brakes are always properly engaged, reducing the risk of brake failure. Its robust construction ensures durability under heavy loads, making it ideal for commercial use. By choosing Bendix, you are investing in a product that meets the highest industry standards for quality and performance. Source One Parts Center is the best destination for genuine Bendix OEM parts, ensuring you receive the best for your vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Anchor Bracket Angle
0°
Arm Offset
1.50 IN (Left Hand)
Maximum Operating Temperature
158 °F (70 °C)
Lube Fitting Position
180°
Torque Rating
23,000 IN LBS
Inclination Angle (Body Angle)
34°
Arm Length 1
6.00 IN
Free Stroke Position
6°
Harmonized System (HS) Code
870830
Product Type
Grounded - Haldex ABA (AA1)
Self-Setting
No
Reference Arm Style
Single Bend
Lube Fitting Type
Straight
Anchor Bracket Style
Strap
Anchor Type
Stud
Country of Origin
United States
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
7.25 lb
