976689N

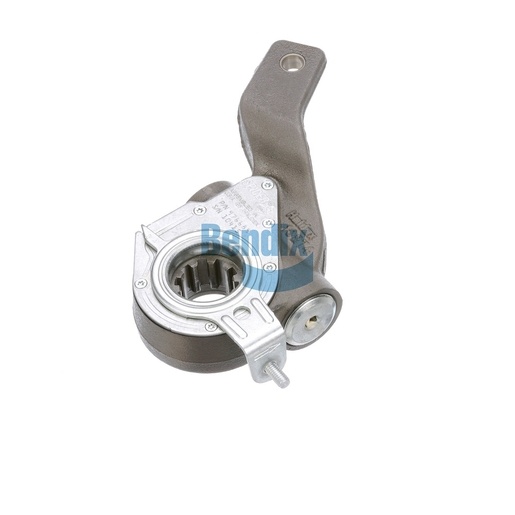

Slack Adjuster (Automatic)
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Automatic Slack Adjuster is a vital component for ensuring the proper function of your vehicle's braking system. Designed for both front and rear applications, this slack adjuster simplifies the maintenance of brake settings, automatically adjusting to the wear of brake shoes for optimal performance. With its robust construction and a torque rating of 23,000 IN LBS, this component can withstand extreme conditions without compromising reliability. Weighing 3.3 kg, it features a unique design that allows for easy installation and maintenance, making it an ideal choice for fleet operators and mechanics looking to enhance vehicle safety and performance. Source One Parts Center is the best choice for purchasing genuine Bendix OEM parts, ensuring that you receive quality components tailored for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Anchor Bracket Angle
0°
Arm Offset
1.50 IN (Right Hand)
Maximum Operating Temperature
158 °F (70 °C)
Lube Fitting Position
180°
Torque Rating
23,000 IN LBS
Inclination Angle (Body Angle)
34°
Arm Length 1
6.00 IN
Free Stroke Position
6°
Harmonized System (HS) Code
870830
Product Type
Grounded - Haldex ABA (AA1)
Country of Origin
Mexico
Self-Setting
No
Reference Arm Style
Single Bend
Lube Fitting Type
Straight
Anchor Bracket Style
Strap
Anchor Type
Stud
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
7.37 lb
