K028965

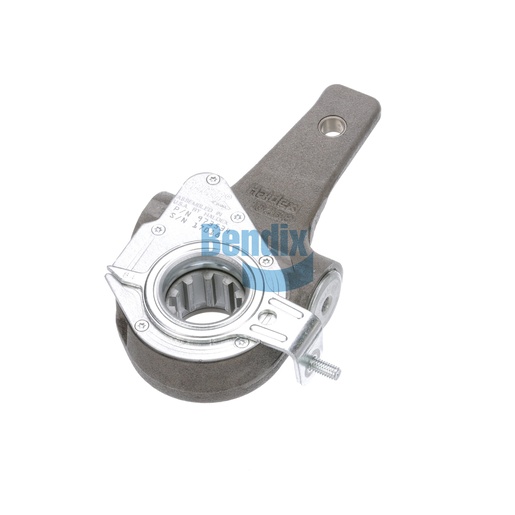

Slack Adjuster (Automatic)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Automatic Slack Adjuster is a critical component for maintaining the efficiency and safety of your braking system. Designed for heavy-duty applications, this adjuster ensures consistent brake performance by automatically adjusting the brake shoes to maintain optimal clearance. This feature reduces wear and tear, prolonging the life of your brake components and enhancing overall safety. With its robust construction and easy installation, it minimizes downtime, keeping your truck operational. Source One Parts Center is your best choice for genuine Bendix OEM parts, ensuring your vehicle is equipped with high-quality components for peak performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Anchor Bracket Angle
0°
Inclination Angle (Body Angle)
0°
Lube Fitting Type
1/8-27 NPT (Plugged)
Maximum Operating Temperature
158 °F (70 °C)
Lube Fitting Position
180°
Torque Rating
23,000 IN LBS
Free Stroke Position
4°
Arm Length 1
5.50 IN
Harmonized System (HS) Code
870830
Product Type
Grounded - Haldex ABA (AA1)
Self-Setting
No
Arm Offset
No Offset
Country of Origin
United States
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
6.75 lb
