DESCRIPTION

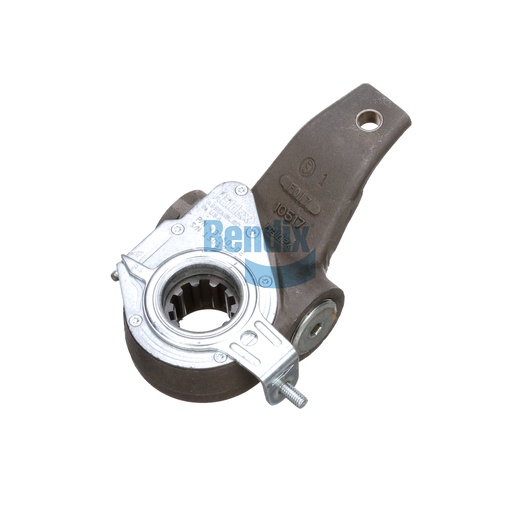

The Bendix Automatic Slack Adjuster is designed to enhance the braking performance of commercial vehicles by ensuring consistent brake application. It features a sturdy construction and a torque rating of 23,000 inch-pounds, providing excellent strength and durability. This slack adjuster is engineered to automatically adjust the brake shoes' position, reducing wear and improving safety. With a net weight of 3.6 kg, it is robust yet lightweight enough for easy installation. The product also comes with a technical attributes guide for reference. For genuine Bendix OEM parts, Source One Parts Center is your trusted provider for quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Anchor Bracket Angle
0°
Inclination Angle (Body Angle)
0°
Arm Offset
1.50 IN (Right Hand)
Maximum Operating Temperature
158 °F (70 °C)
Lube Fitting Position
180°
Torque Rating
23,000 IN LBS
Free Stroke Position
4°
Arm Length 1
5.50 IN
Harmonized System (HS) Code
870830
Lube Fitting Type
90° Elbow
Product Type
Grounded - Haldex ABA (AA1)
Self-Setting
No
Reference Arm Style
Single Bend
Anchor Bracket Style
Strap
Anchor Type
Stud
Country of Origin
United States
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
7.88 lb
