K041768

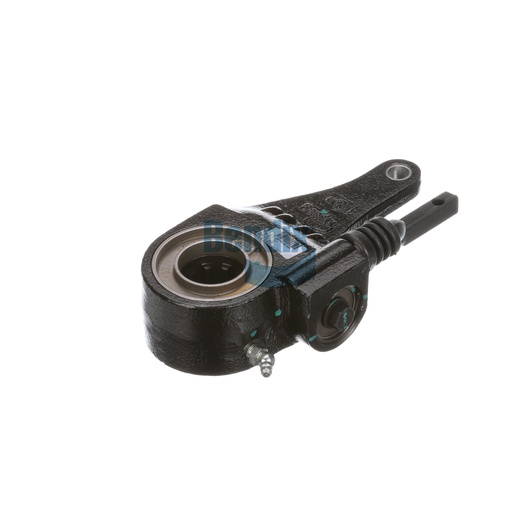

Slack Adjuster (Automatic)
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Automatic Slack Adjuster is a critical component in maintaining the performance and safety of your truck’s braking system. Designed for automatic adjustment, it ensures that brake shoes maintain optimal contact with the drum, which is essential for consistent braking power. This slack adjuster features a robust design suitable for heavy-duty applications, weighing in at a substantial size for durability. Its link style allows for easy installation, making it a practical choice for fleet maintenance. By ensuring proper brake adjustment, this component significantly contributes to vehicle safety and efficiency. For genuine Bendix OEM parts that you can trust, Source One Parts Center is the best choice for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Length
108.7 mm (4.28 in)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Height
206.3 mm (8.12 in)
Lube Fitting Type
45° Elbow
Width
51.3 mm (2.02 in)
Arm Length 1
6.00 IN
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Link Style
Arm Offset
No Offset
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
0.02 lb
