K043931

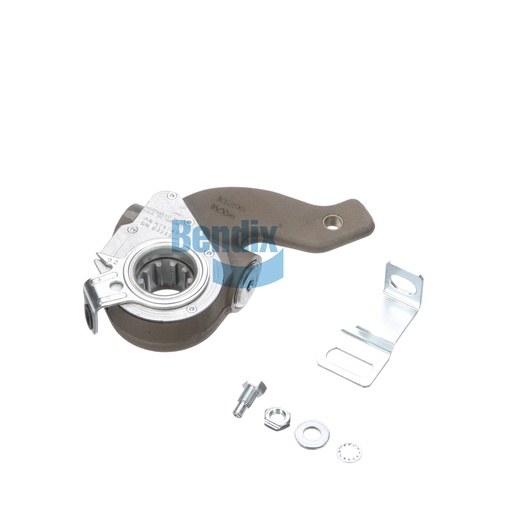

Slack Adjuster (Automatic)
Bendix
BACK ORDERED
Please contact us for information on lead time
$224.95
$269.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Bendix Automatic Slack Adjusters are essential for maintaining optimal brake performance in commercial trucks. These innovative components automatically adjust the brake shoes, ensuring consistent pressure and efficiency without the need for manual intervention. Constructed from durable materials, they are designed to withstand the rigors of heavy-duty use, providing a reliable solution for fleet operators. Easy to install, these slack adjusters help reduce maintenance time and enhance the overall safety of your vehicle. For top-quality Bendix OEM parts, rely on Source One Parts Center, where genuine products meet exceptional service to keep your fleet performing at its best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Lube Fitting Type
1/8-27 NPT (Plugged)
Anchor Bracket Angle
130°
Maximum Operating Temperature
158 °F (70 °C)
Lube Fitting Position
180°
Torque Rating
23,000 IN LBS
Inclination Angle (Body Angle)
35°
Free Stroke Position
4°
Arm Length 1
5.50 IN
Harmonized System (HS) Code
870830
Anchor Bracket Style
Clamp
Product Type
Grounded - Haldex ABA (AA1)
Self-Setting
No
Arm Offset
No Offset
Reference Arm Style
Single Bend
Anchor Type
Slot
Country of Origin
United States
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
7.37 lb
