$134.95
$161.94
FINAL SALE. No returns or exchanges.

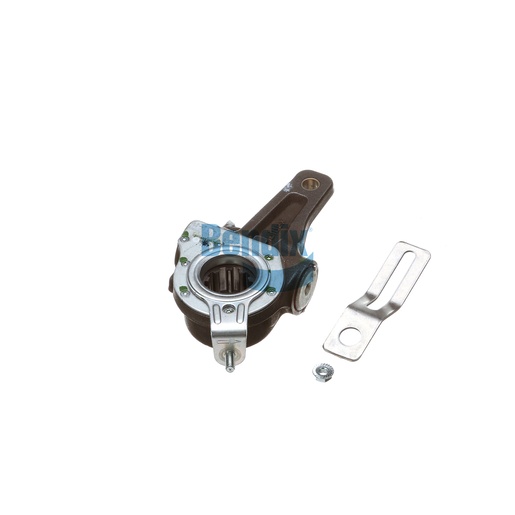

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix slack adjuster kit is designed to ensure your vehicle's brakes remain responsive and effective. This innovative kit features a self-setting design that simplifies maintenance and enhances performance, making it a vital component for commercial vehicles. With a torque rating of 23,000 IN LBS, this slack adjuster is robust enough to handle the rigors of heavy-duty applications. Its easy installation and compatibility with various brake systems make it a convenient choice for fleet operators. Choose Source One Parts Center for your genuine Bendix OEM parts, ensuring the utmost quality and reliability for your commercial vehicles.
SPECIFICATIONS
Anchor Bracket Angle
-16° to 124°
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Torque Rating
23,000 IN LBS
Free Stroke Position
4°
Arm Length 1
5.50 IN
Harmonized System (HS) Code
870830
Product Type
Grounded - Haldex S-ABA
Country of Origin
Mexico
Arm Offset
No Offset
Reference Arm Style
Single Bend
Lube Fitting Type
Straight
Anchor Bracket Style
Strap
Anchor Type
Stud
Lube Fitting Position
Upper Position (Arm)
Self-Setting
Yes
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
6.68 lb
