$159.95
$191.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

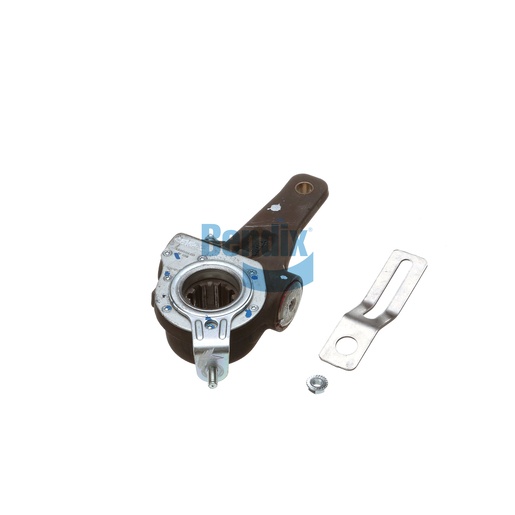

The Bendix Slack Adjuster Kit is an essential component for maintaining your commercial vehicle's automatic slack adjusters, ensuring optimal brake performance and safety. This kit, featuring a robust design, is crafted in the USA to meet the rigorous demands of the trucking industry. With an impressive torque rating of 23,000 IN LBS, it guarantees reliable operation under heavy loads. The kit includes all necessary components for a straightforward installation, allowing for quick and efficient maintenance of your braking system. Compatible with various brake configurations, its self-setting feature simplifies adjustments, enhancing overall efficiency. Weighing 3.0 kg, it's designed for durability and ease of use, making it a must-have for fleet operators. For the best place to purchase genuine Bendix OEM parts, Source One Parts Center is your go-to destination, ensuring quality and affordability.
SPECIFICATIONS
Anchor Bracket Angle
-16° to 124°
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
23,000 IN LBS
Free Stroke Position
4°
Arm Length 1
6.00 IN
Harmonized System (HS) Code
870830
Product Type
Grounded - Haldex S-ABA
Arm Offset
No Offset
Reference Arm Style
Single Bend
Lube Fitting Type
Straight
Anchor Bracket Style
Strap
Anchor Type
Stud
Country of Origin
United States
Lube Fitting Position
Upper Position (Arm)
Self-Setting
Yes
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
6.67 lb
