$149.95
$179.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

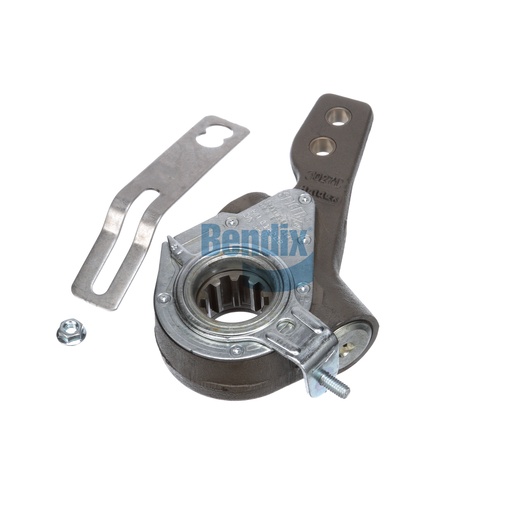

The Slack Adjuster Kit is an essential component for ensuring the proper operation of your Bendix automatic slack adjusters. Designed for heavy-duty applications, this kit features a robust construction that guarantees durability and reliability under demanding conditions. With precise engineering, it ensures optimal performance and longevity, making it a crucial part of your braking system. The kit includes all necessary components for easy installation and maintenance, allowing fleet operators to keep their vehicles in peak condition. By investing in this genuine Bendix part, you ensure that your braking system operates at its best, enhancing safety on the road. For sourcing quality Bendix OEM parts, Source One Parts Center is the best choice, offering a comprehensive selection tailored to commercial vehicles.
SPECIFICATIONS
Anchor Bracket Angle
-16°
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
23,000 IN LBS
Inclination Angle (Body Angle)
34°
Free Stroke Position
4°
Arm Length 1
5.00 IN
Arm Length 2
6.00 IN
Harmonized System (HS) Code
870830
Lube Fitting Type
90° Elbow
Product Type
Grounded - Haldex ABA (AA1)
Self-Setting
No
Arm Offset
No Offset
Reference Arm Style
Single Bend
Anchor Bracket Style
Strap
Anchor Type
Stud
Country of Origin
United States
Lube Fitting Position
Upper Position (Arm)
Arm Bushing(s)
Ø .506 IN (Ø 12.85 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
6.92 lb
