$129.95
$155.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

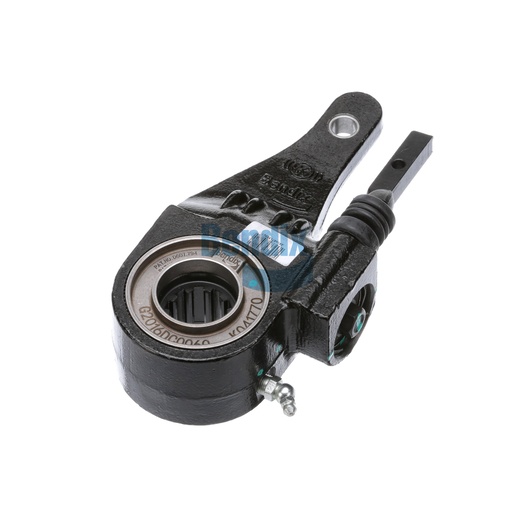

The Automatic Slack Adjuster from Bendix is crucial for maintaining optimal brake performance in your commercial vehicle. This link-style slack adjuster is designed to automatically compensate for brake wear, ensuring consistent braking pressure and enhancing safety. With a torque rating of 20,000 in-lbs and a maximum operating temperature of 158°F, it is built to perform in demanding conditions. The slack adjuster's robust design includes a lube fitting for easy maintenance, contributing to its longevity and reliability. By integrating this component into your braking system, you enhance the overall efficiency and effectiveness of your vehicle's brakes. For sourcing genuine Bendix OEM parts, Source One Parts Center is the top destination, providing high-quality components that ensure your fleet operates at its best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Length
108.7 mm (4.28 in)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Height
206.3 mm (8.12 in)
Lube Fitting Type
45° Elbow
Arm Length 1
5.50 IN
Width
51.3 mm (2.02 in)
Harmonized System (HS) Code
870830
Country of Origin
India
Product Type
Link Style
Arm Offset
No Offset
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.25 IN - 10 Spline
Weight
7.34 lb
