$199.95
$239.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

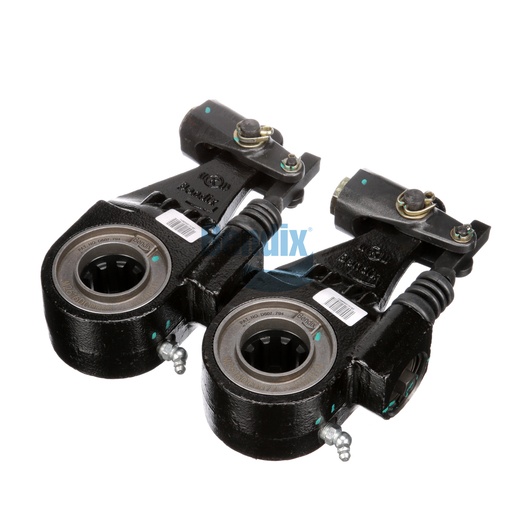

The Bendix Automatic Slack Adjuster is a vital component for maintaining optimal brake function in commercial vehicles. This innovative part automatically adjusts the brake shoes, ensuring consistent performance and reducing the need for manual adjustments. Constructed with high-quality materials, it offers durability and reliability, even in the most demanding driving conditions. Its design allows for quick installation, making it a favorite among fleet operators who prioritize maintenance efficiency. With a torque rating that supports effective braking, this slack adjuster enhances safety and control on the road. For those seeking genuine Bendix OEM parts, Source One Parts Center stands out as the trusted supplier, providing authentic products that keep your fleet running at its best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Adaptor Length
.78 IN (19.8 MM)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Length
114.7 mm (4.52 in)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Height
212.0 mm (8.35 in)
Lube Fitting Type
45° Elbow
Arm Length 1
5.50 IN
Adaptor Size
5/8-18 UNF-2B
Width
51.3 mm (2.02 in)
Harmonized System (HS) Code
870830
Clevis / Yoke Style
Easy-On (EO)
Country of Origin
India
Product Type
Link Style
Arm Offset
No Offset
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
14.9 lb
