$199.95
$239.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

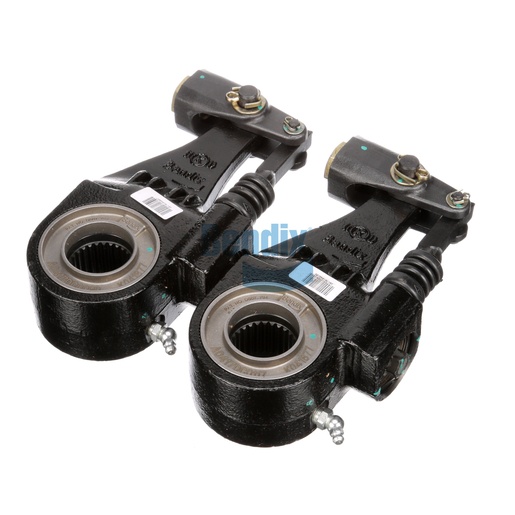

The Automatic Slack Adjuster from Bendix is a vital component in ensuring consistent brake performance for heavy-duty vehicles. Designed with advanced technology, this slack adjuster automatically compensates for brake lining wear, maintaining optimal brake shoe clearance for safe and effective stopping power. Its robust construction and link style design ensure reliability and durability under demanding conditions. The slack adjuster's easy installation and maintenance contribute to reduced downtime, keeping your fleet operational. For authentic Bendix OEM parts, Source One Parts Center is the leading provider, ensuring you receive top-quality components for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Adaptor Length
.78 IN (19.8 MM)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Length
114.7 mm (4.52 in)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Height
212.0 mm (8.35 in)
Lube Fitting Type
45° Elbow
Adaptor Size
5/8-18 UNF-2B
Width
51.3 mm (2.02 in)
Arm Length 1
6.00 IN
Harmonized System (HS) Code
870830
Clevis / Yoke Style
Easy-On (EO)
Country of Origin
India
Product Type
Link Style
Arm Offset
No Offset
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
14.95 lb
