K043124

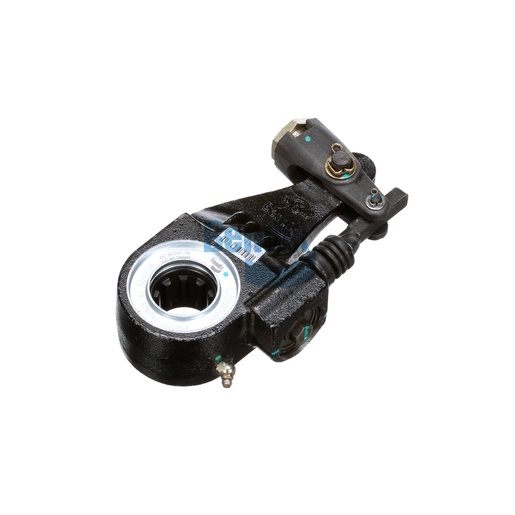

Slack Adjuster (Automatic)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Automatic Slack Adjuster is a vital component in ensuring your vehicle's braking system operates efficiently and safely. This automatic adjuster is designed to maintain optimal brake performance by automatically adjusting the slack to compensate for wear, ensuring that the brakes engage fully and effectively. With a torque rating of 20,000 IN LBS, this slack adjuster is built to handle the demands of heavy-duty applications while maintaining reliability. Its compact design allows for easy installation, reducing maintenance time and increasing vehicle uptime. By using genuine Bendix products, you are investing in the safety and efficiency of your fleet. Source One Parts Center is the premier source for authentic Bendix OEM parts, providing the best solutions for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Adaptor Length
.82 IN (20.8 MM)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Length
114.7 mm (4.52 in)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Height
212.0 mm (8.35 in)
Lube Fitting Type
45° Elbow
Arm Length 1
5.50 IN
Adaptor Size
5/8-18 UNF-2B
Width
51.3 mm (2.02 in)
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Link Style
Arm Offset
No Offset
Clevis / Yoke Style
Quick Connect (QC)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
0.02 lb
