K046175

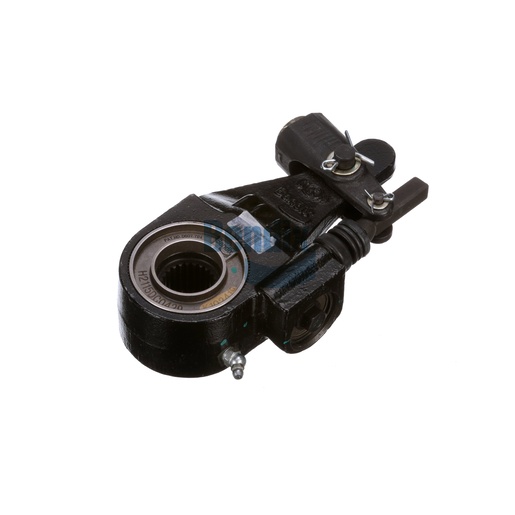

Slack Adjuster (Automatic)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Slack Adjuster (Automatic) is a vital component for ensuring optimal performance in commercial vehicle braking systems. This link-style adjuster, manufactured in China, is designed for durability and reliability under demanding conditions. With a torque rating of 20,000 IN LBS, it guarantees effective and consistent brake adjustments, enhancing overall safety. The automatic feature simplifies maintenance, allowing for self-adjusting capabilities that reduce the need for manual intervention. Weighing only 3.3 kg, it is lightweight yet robust, making installation straightforward. For genuine Bendix OEM parts, Source One Parts Center is the best choice for quality and value.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Adaptor Length
.78 IN (19.8 MM)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Adaptor Size
1/2-20 UNF-2B
Length
114.7 mm (4.52 in)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Height
212.0 mm (8.35 in)
Lube Fitting Type
45° Elbow
Arm Length 1
5.00 IN
Width
51.3 mm (2.02 in)
Harmonized System (HS) Code
870830
Country of Origin
China
Clevis / Yoke Style
Easy-On (EO)
Product Type
Link Style
Arm Offset
No Offset
Spline Diameter - Teeth
Ø 1.25 IN - 24 Spline
Weight
7.34 lb
