K050079

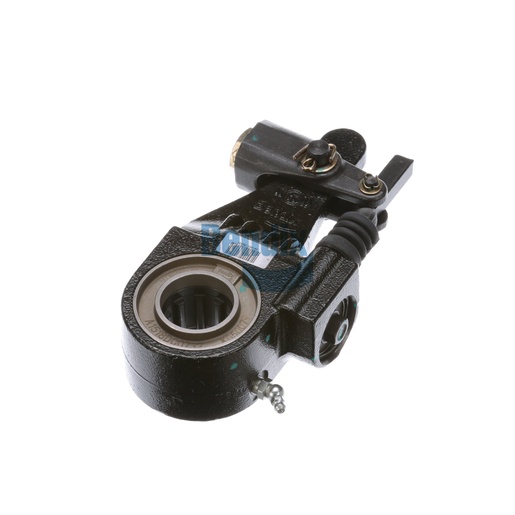

Slack Adjuster (Automatic)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Automatic Slack Adjuster from Bendix is designed to maintain optimal brake performance by automatically adjusting the brake shoes to compensate for wear. This link-style slack adjuster features a robust construction that ensures durability and reliability in demanding conditions. With a torque rating of 20,000 IN LBS and a maximum operating temperature of 158°F, it is built to withstand the rigors of heavy-duty applications. This adjuster is also engineered for easy installation and compatibility with various truck models, ensuring a seamless fit. For those seeking genuine Bendix OEM parts, Source One Parts Center is the best choice, providing authentic components that enhance the safety and efficiency of your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Adaptor Length
.78 IN (19.8 MM)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Length
114.7 mm (4.52 in)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Height
212.0 mm (8.35 in)
Lube Fitting Type
45° Elbow
Arm Length 1
5.00 IN
Adaptor Size
5/8-18 UNF-2B
Width
51.3 mm (2.02 in)
Harmonized System (HS) Code
870830
Country of Origin
China
Clevis / Yoke Style
Easy-On (EO)
Product Type
Link Style
Arm Offset
No Offset
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
7.34 lb
