K051467

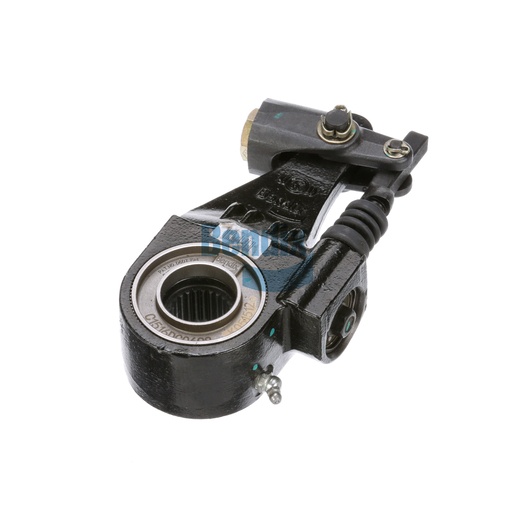

Slack Adjuster (Automatic)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix automatic slack adjuster is an essential component for achieving optimal braking performance in your commercial vehicle. This link style adjuster automatically maintains the correct brake shoe clearance, ensuring consistent and effective braking under various load conditions. With a torque rating of 20,000 IN LBS, this slack adjuster is engineered for durability and reliability, making it suitable for heavy-duty applications. Designed with precision, it features a lube fitting type that allows for easy maintenance, ensuring your braking system operates smoothly over time. Weighing in at 3.5 kg, this slack adjuster is lightweight yet robust, providing a perfect balance between functionality and ease of installation. For operators seeking genuine Bendix OEM parts, Source One Parts Center is the best source, offering exceptional quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Adaptor Length
.78 IN (19.8 MM)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Adaptor Size
1/2-20 UNF-2B
Length
114.7 mm (4.52 in)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Height
212.0 mm (8.35 in)
Lube Fitting Type
45° Elbow
Arm Length 1
5.50 IN
Width
51.3 mm (2.02 in)
Harmonized System (HS) Code
870830
Country of Origin
China
Clevis / Yoke Style
Easy-On (EO)
Product Type
Link Style
Arm Offset
No Offset
Spline Diameter - Teeth
Ø 1.25 IN - 24 Spline
Weight
7.72 lb
