K051512

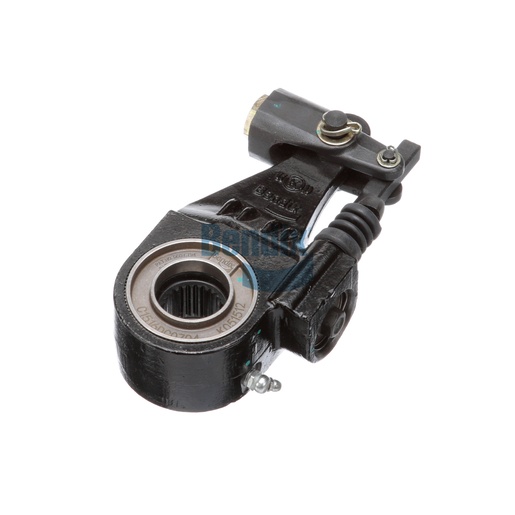

Slack Adjuster (Automatic)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Automatic Slack Adjuster is designed to enhance the efficiency and performance of your vehicle's braking system. This link-style slack adjuster automatically maintains the proper brake shoe clearance, ensuring optimal brake function without the need for manual adjustments. With a torque rating of 20,000 inch-pounds, it is engineered to handle the rigorous demands of commercial vehicles. Its robust construction and innovative design help to improve safety by preventing brake fade and ensuring consistent braking performance. Easy to install and maintain, this slack adjuster is an essential component for fleet operators aiming to maximize vehicle reliability and safety. For top-quality Bendix OEM parts, Source One Parts Center is the best place to find the right components for your heavy-duty trucks.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Adaptor Length
.78 IN (19.8 MM)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Length
114.7 mm (4.52 in)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Height
212.0 mm (8.35 in)
Lube Fitting Type
45° Elbow
Arm Length 1
5.50 IN
Adaptor Size
5/8-18 UNF-2B
Width
51.3 mm (2.02 in)
Harmonized System (HS) Code
870830
Clevis / Yoke Style
Easy-On (EO)
Country of Origin
India
Product Type
Link Style
Arm Offset
No Offset
Spline Diameter - Teeth
Ø 1.25 IN - 24 Spline
Weight
7.72 lb
