K096199

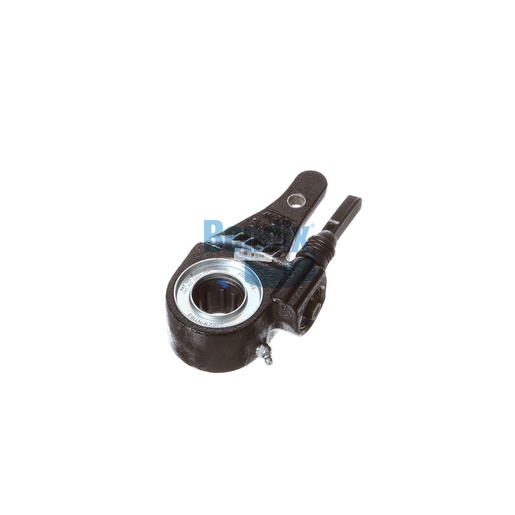

Slack Adjuster (Automatic)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Automatic Slack Adjuster is a key component in the Bendix braking system, designed to ensure optimal brake performance by automatically adjusting the brake shoes. This link-style slack adjuster is built for durability and efficiency, with a torque rating of 20,000 inch-pounds, making it suitable for heavy-duty applications. Its design includes a 45° elbow lube fitting, ensuring easy maintenance and increased longevity. With a maximum operating temperature of 158°F and a minimum of -40°F, it is engineered to perform under a wide range of conditions. Manufactured with precision in India, it adheres to strict quality standards. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring that you receive high-quality components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Length
108.7 mm (4.28 in)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Height
206.3 mm (8.12 in)
Lube Fitting Type
45° Elbow
Arm Length 1
5.00 IN
Width
51.3 mm (2.02 in)
Harmonized System (HS) Code
870830
Country of Origin
India
Product Type
Link Style
Arm Offset
No Offset
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
0.02 lb
