$139.95
$167.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

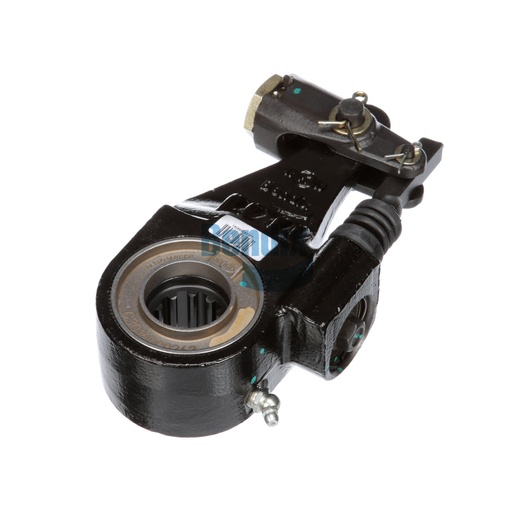

The Automatic Slack Adjuster from Bendix is a crucial part of your vehicle's braking system, designed to enhance safety and performance. This link-style adjuster automatically maintains optimal brake shoe clearance, ensuring consistent braking force and reducing wear on components. With a torque rating of 20,000 IN LBS and a robust design that can withstand extreme conditions, this slack adjuster is ideal for heavy-duty applications. The installation is straightforward, and its durable construction promises a long service life, minimizing the need for frequent adjustments. The slack adjuster's performance directly impacts the efficiency of your braking system, contributing to enhanced vehicle safety. For high-quality Bendix components, Source One Parts Center is your best source for genuine OEM parts that ensure your commercial vehicle operates at peak performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Adaptor Length
.82 IN (20.8 MM)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Length
114.7 mm (4.52 in)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Height
212.0 mm (8.35 in)
Lube Fitting Type
45° Elbow
Arm Length 1
5.50 IN
Adaptor Size
5/8-18 UNF-2B
Width
51.3 mm (2.02 in)
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Link Style
Arm Offset
No Offset
Clevis / Yoke Style
Quick Connect (QC)
Spline Diameter - Teeth
Ø 1.25 IN - 10 Spline
Weight
7.74 lb
