$149.95
$179.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

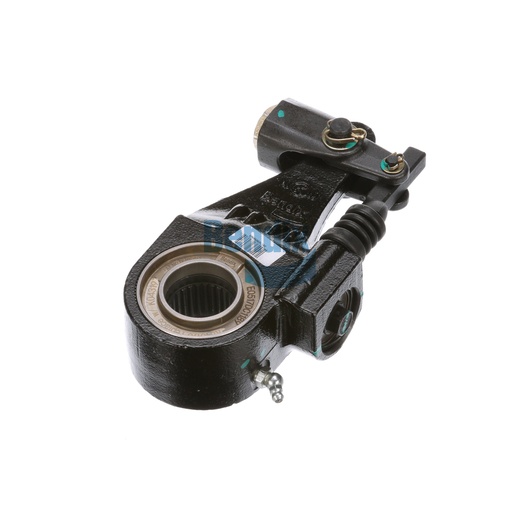

The Automatic Slack Adjuster is essential for maintaining optimal braking performance in commercial vehicles. This slack adjuster is designed to automatically compensate for brake wear, ensuring that your brakes are always properly adjusted. With a torque rating of 20,000 IN LBS and built for heavy-duty applications, it offers robust performance and reliability. The adjuster features a link style design, allowing for easy installation and maintenance, and operates effectively in a wide range of temperatures, from -40 °F to 158 °F. This reduces the need for manual adjustments, enhancing safety and efficiency on the road. For the best selection of genuine Bendix OEM parts, Source One Parts Center is your trusted source, providing high-quality components that keep your vehicles running smoothly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Adaptor Length
.78 IN (19.8 MM)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Adaptor Size
1/2-20 UNF-2B
Length
114.7 mm (4.52 in)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Height
212.0 mm (8.35 in)
Lube Fitting Type
45° Elbow
Arm Length 1
5.50 IN
Width
51.3 mm (2.02 in)
Harmonized System (HS) Code
870830
Country of Origin
China
Clevis / Yoke Style
Easy-On (EO)
Product Type
Link Style
Arm Offset
No Offset
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
7.78 lb
