$144.95
$173.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

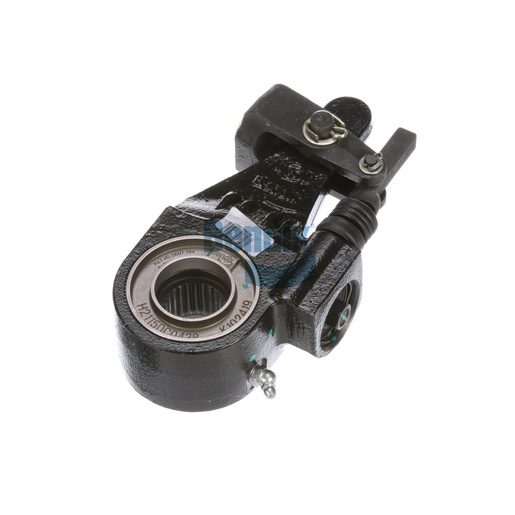

The Bendix Automatic Slack Adjuster is a vital component designed to maintain optimal brake performance in commercial vehicles by automatically adjusting brake shoe clearance. This innovative link-style adjuster ensures that your brakes operate at peak efficiency, reducing wear and enhancing safety on the road. With a robust torque rating of 20,000 inch-pounds and a maximum operating temperature of 158°F, this slack adjuster is engineered for durability and reliability in demanding environments. Its user-friendly design simplifies installation and maintenance, helping to keep your braking system in top condition. When you purchase Bendix parts from Source One Parts Center, you are choosing quality and reliability that can make all the difference in your vehicle's performance and safety.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Adaptor Length
.78 IN (19.8 MM)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Adaptor Size
1/2-20 UNF-2B
Length
108.7 mm (4.28 in)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Height
206.3 mm (8.12 in)
Lube Fitting Type
45° Elbow
Arm Length 1
5.00 IN
Width
51.3 mm (2.02 in)
Harmonized System (HS) Code
870830
Clevis / Yoke Style
Easy-On (EO) - 5/8 IN Offset
Country of Origin
India
Product Type
Link Style
Arm Offset
No Offset
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.25 IN - 24 Spline
Weight
12.1 lb
