K102422

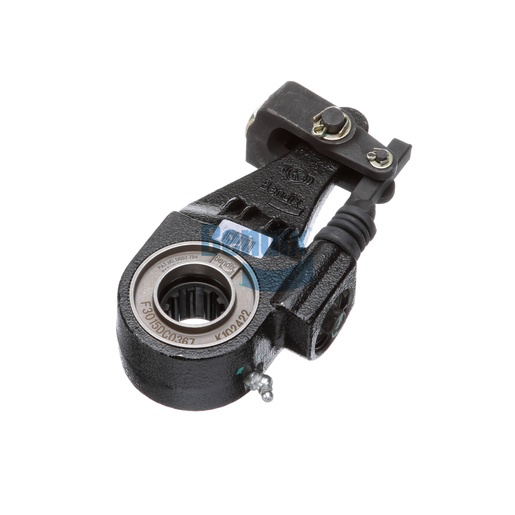

Slack Adjuster (Automatic)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Automatic Slack Adjuster is an innovative solution designed to maintain optimal brake performance in your commercial vehicle without the need for manual adjustments. This link-style slack adjuster automatically compensates for brake shoe wear, ensuring that your brakes remain effective over time and reducing the risk of brake fade. With a robust construction that can handle a torque rating of up to 20,000 inch-pounds, this slack adjuster is built to withstand the demands of heavy-duty applications. Featuring a compact design and easy installation, it is compatible with various brake systems, making it a versatile choice for fleet operators. Trust Source One Parts Center to provide you with genuine Bendix OEM Automatic Slack Adjusters, ensuring your vehicle's braking system performs at its best day in and day out.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Adaptor Length
.78 IN (19.8 MM)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Adaptor Size
1/2-20 UNF-2B
Length
114.7 mm (4.52 in)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Height
212.0 mm (8.35 in)
Lube Fitting Type
45° Elbow
Arm Length 1
5.50 IN
Width
51.3 mm (2.02 in)
Harmonized System (HS) Code
870830
Country of Origin
China
Clevis / Yoke Style
Easy-On (EO) - 5/8 IN Offset
Product Type
Link Style
Arm Offset
No Offset
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.25 IN - 10 Spline
Weight
7.05 lb
